Centaur Rocket Stage

The Centaur is a family of rocket propelled upper stages produced by U.S. launch service provider United Launch Alliance, with one main active version and one version under development. The 3.05 m (10.0 ft) diameter Common Centaur/Centaur III flies as the upper stage of the Atlas V launch vehicle, and the 5.4 m (18 ft) diameter Centaur V is being developed as the upper stage of ULA's new Vulcan rocket. Centaur was the first rocket stage to use liquid hydrogen (LH2) and liquid oxygen (LOX) propellants, a high-energy combination that is ideal for upper stages but has significant handling difficulties.

The Centaur concept originated in 1956 when Convair began studying a liquid hydrogen fueled upper stage. The ensuing project began in 1958 as a joint venture among Convair, the Advanced Research Projects Agency (ARPA), and the U.S. Air Force. In 1959, NASA assumed ARPA's role. Centaur initially flew as the upper stage of the Atlas-Centaur launch vehicle, encountering a number of early developmental issues due to the pioneering nature of the effort and the use of liquid hydrogen. In 1994 General Dynamics sold their Space Systems division to Lockheed-Martin.

Centaur A-D (Atlas)

The Centaur was originally developed for use with the Atlas launch vehicle family. Known in early planning as the 'high-energy upper stage', the choice of the mythological Centaur as a namesake was intended to represent the combination of the brute force of the Atlas booster and finesse of the upper stage.

Initial Atlas-Centaur launches used developmental versions, labeled Centaur-A through -C. The only Centaur-A launch on 8 May 1962 ended in an explosion 54 seconds after liftoff when insulation panels on the Centaur separated early, causing the LH2 tank to overheat and rupture. After extensive redesigns, the only Centaur-B flight on 26 November 1963 was successful. Centaur-C flew three times with two failures and one launch declared successful although the Centaur failed to restart. Centaur-D was the first version to enter operational service, with fifty-six launches.

On 30 May 1966, an Atlas-Centaur boosted the first Surveyor lander towards the Moon. This was followed by six more Surveyor launches over the next two years, with the Atlas-Centaur performing as expected. The Surveyor program demonstrated the feasibility of reigniting a hydrogen engine in space and provided information on the behavior of LH2 in space.

By the 1970s, Centaur was fully mature and had become the standard rocket stage for launching larger civilian payloads into high Earth orbit, also replacing the Atlas-Agena vehicle for NASA planetary probes.

By the end of 1989, Centaur-D and -G had been used as the upper stage for 63 Atlas rocket launches, 55 of which were successful.

Saturn I S-V

The Saturn I was designed to fly with a S-V third stage to enable payloads to go beyond low earth orbit (LEO). The S-V stage was intended to be powered by two RL-10A-1 engines burning liquid hydrogen as fuel and liquid oxygen as oxidizer. The S-V stage was flown four times on missions SA-1 through SA-4, all four of these missions had the S-V's tanks filled with water to be used a ballast during launch. The stage was not flown in an active configuration.

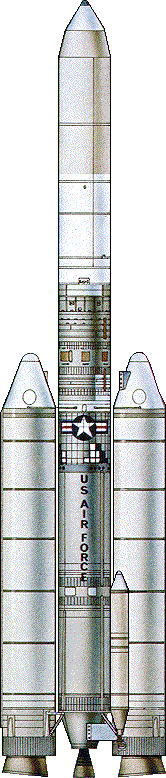

Centaur D-1T (Titan III)

The Centaur D was improved for use on the far more powerful Titan III booster in the 1970s, with the first launch of the resulting Titan IIIE in 1974. The Titan IIIE more than tripled the payload capacity of Atlas-Centaur, and incorporated improved thermal insulation, allowing an orbital lifespan of up to five hours, an increase over the 30 minutes of the Atlas-Centaur.

The first launch of Titan IIIE in February 1974 was unsuccessful, with the loss of the Space Plasma High Voltage Experiment (SPHINX) and a mockup of the Viking probe. It was eventually determined that Centaur's engines had ingested an incorrectly installed clip from the oxygen tank.

The next Titan-Centaurs launched Helios 1, Viking 1, Viking 2, Helios 2, Voyager 1, and Voyager 2. The Titan booster used to launch Voyager 1 had a hardware problem that caused a premature shutdown, which the Centaur stage detected and successfully compensated for. Centaur ended its burn with less than 4 seconds of fuel remaining.
